Pre-Design Investigation SSS-2

Site-Wide Soils & Sediments
PDI SSS-2 Depleted Uranium Penetrator Investigation

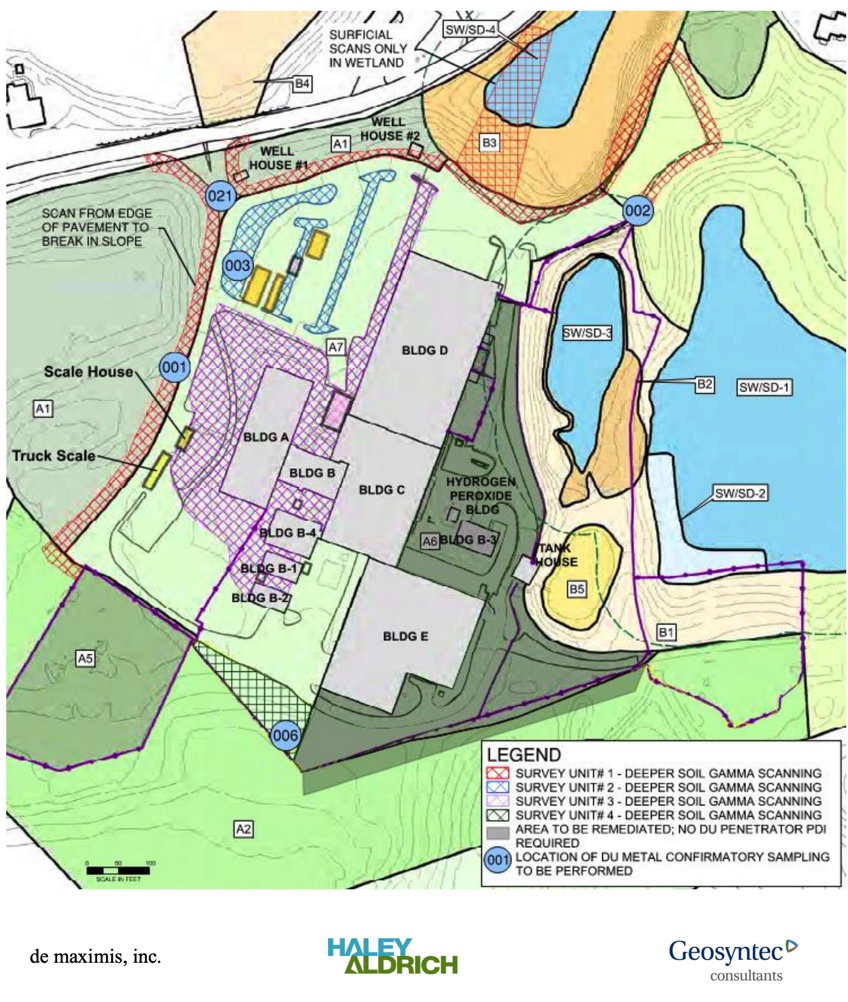

PDI SSS-2 Includes performing confirmatory sampling in the areas where DU penetrators or metal fragments were previously removed during the NTCRA (locations 001, 002, 003, 006, 021 on figure). If found, impacted soil and DU penetrators/metal fragments will be removed and additional confirmatory samples collected.

PDI SSS-2 also includes performing gamma walkover survey of surficial soil where excavations are not already planned as shown on the four survey units on the figure (SU 1, 2, 3, 4) surveying the top six inches, and then, if no elevated measurements are recorded, scrape back the top 6 inches and perform another gamma walkover survey of the newly exposed surface soil. If DU penetrators or metal fragments are identified, the metal and visibly impacted soil will be excavated and containerized and the area investigated for the source.
